COMPATIBILITY
2021+ Toyota GR Yaris
2023+ Toyota GR Corolla
Manufactured with 0.6" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. The 2 end ports are 3/4"-16 threaded (8AN ORB). The upper area of the engine is very narrow so the 2 top ports are 9/16"-18 threaded (6AN ORB).
The OEM fuel injectors are compatible with these fuel rails. The machined ports are compatible with 11mm upper injector O-rings.
Because of the tight clearance, the injector electrical connector can be tricky for aftermarket injectors.
-Anodized surface finish for wear and corrosion resistance
-Lightweight aluminum construction
-Inner bore diameter: 0.6 inch
-Can be converted to a pressure regulated return system
-No special tools required for installation
-Fits under the factory engine cover

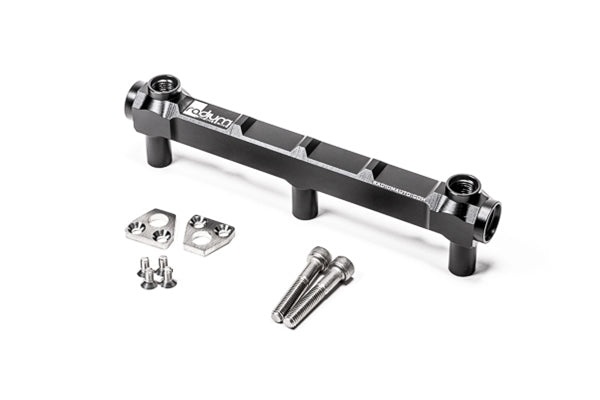

This kit, 20-0766, only includes the fuel rail and all of the necessary mounting hardware. This is ideal for those wanting to make a custom fuel system.
Radium Engineering also offers a plug and play plumbing kit that reuses all of the OEM parts - 20-0766-PK
